Smart Parking Bollard
Smart Parking Bollard

Smart Parking Bollard

The Smart Parking Bollard is a key component in modern intelligent parking management systems, designed to control vehicle access, restrict unauthorized entry, and provide real-time parking management data.

Unlike traditional manually operated or mechanically controlled bollards that lack efficiency and data connectivity, the Smart Parking Bollard integrates automatic control technology, sensors, and network communication to enable fully automated rising and lowering, offering efficient and intelligent vehicle management.

The system is typically integrated with parking management platforms, license plate recognition (ANPR) systems, and automated payment kiosks to automatically identify vehicle authorization upon arrival—allowing only approved vehicles to enter or exit.

Equipped with high-brightness LED indicators or display panels, it clearly communicates access status, and includes audible and visual alerts to enhance operational safety.

Built with waterproof, dustproof, and impact-resistant materials, the Smart Parking Bollard is highly durable, ensuring stable outdoor operation with minimal maintenance costs.

Through IoT connectivity, the bollard links to a central management platform, enabling real-time monitoring, remote control, fault alerts, and data analytics.

Administrators can track traffic flow, usage rates, and security status for data-driven management decisions.

Advanced models also support wireless communication, mobile app control, and automated scheduling, seamlessly integrating with smart parking, intelligent transportation, and urban management systems to form a comprehensive smart mobility solution.

Overall, the Smart Parking Bollard combines automated control, sensing technology, remote communication, and data analytics to enhance parking management efficiency and safety, providing both drivers and operators with a convenient, secure, and intelligent parking experience—a vital infrastructure component for modern smart parking lots and smart cities.

Display Screen

Shows parking and payment information

Multiple Payment Options

Supports mobile and credit card payments

Communication Connectivity

4G / 5G / NB-IoT network compatible

Waterproof & Dustproof

IP65-rated protection

Power Supply Design

AC mains + backup battery or solar option

Parking Detection

Integrated geomagnetic / ultrasonic sensors

System Integration

Supports app and cloud payment platforms

Key Features

Smart Parking Bollard
  • Automatic Lifting Control

    Automatically raises and lowers the bollard based on vehicle authorization—simple and efficient operation.

  • Multiple Authorization Methods

    Supports license plate recognition, RFID cards, mobile app control, or central platform management.

  • Durable & Reliable

    Built with high protection ratings (IP65/IP66) for water, dust, and impact resistance, ideal for outdoor environments.

  • Remote Monitoring

    Connects to a central management system for real-time operational monitoring.

  • Safety Indicators

    Equipped with LED lights and audio-visual alerts to indicate entry or restricted access status.

Product Specifications

Material Aluminum Alloy, Stainless Steel, Reinforced Plastic
Power Supply AC 220V / DC 24V
Bollard Height 600 mm – 1200 mm (adjustable by model)
Bollard Diameter 76 mm – 114 mm
Raising/Lowering Speed  Approx. 3 – 6 seconds
Control Methods ANPR, RFID Card, Remote Control, App, or Central Platform
Protection Rating IP65 / IP66 (Waterproof and Dustproof)
Operating Temperature -20°C to +60°C
Weight Approx. 20–50 kg (depending on model)
Indicator Light High-brightness LED for access status display
Communication Interface RS485 / TCP/IP / Wireless Network

Core Functions

Vehicle Access Management

Controls authorized vehicle entry and exit to improve site management efficiency.

Abnormal Event Alerts

Detects unauthorized access, malfunction, or impact and issues immediate alerts.

Data Analytics

Provides statistics on traffic volume, access frequency, and utilization rates.

Smart System Integration

Interfaces seamlessly with smart parking platforms, ANPR systems, and payment kiosks.

Remote Control & Maintenance

Allows administrators to control and maintain devices via a centralized backend system.

Application Fields

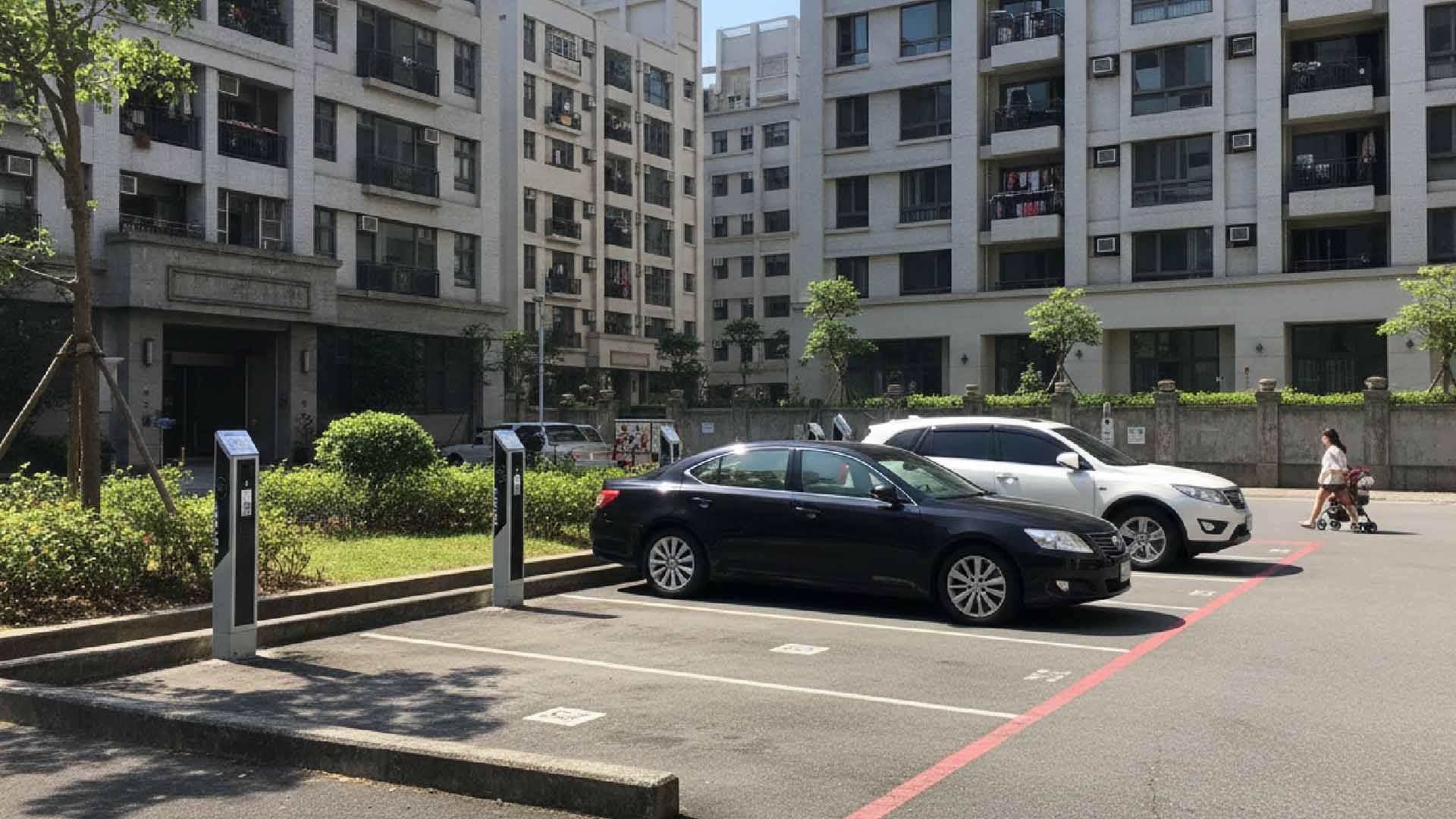

Residential Communities

Enhances community safety and parking management efficiency.

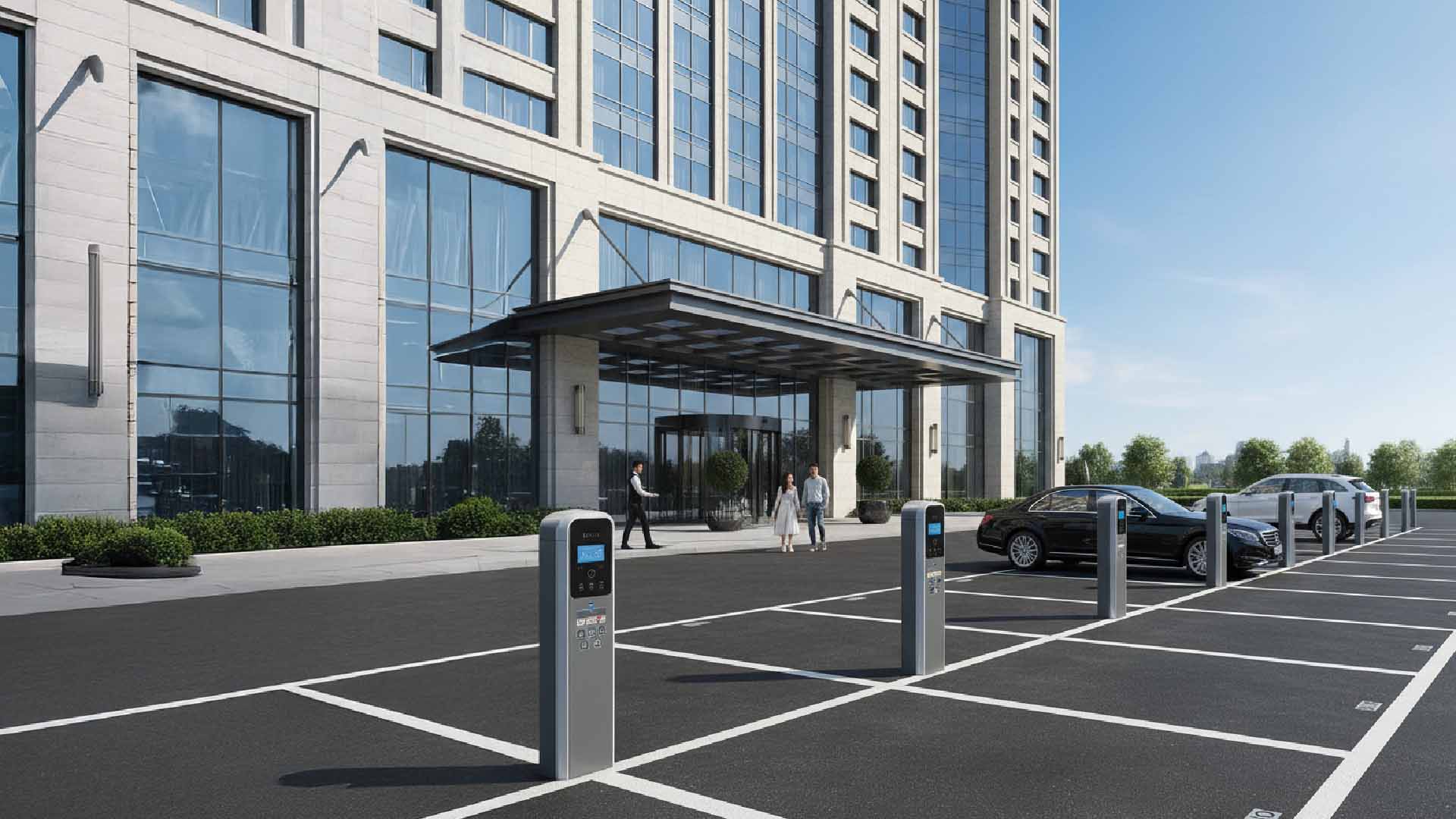

Commercial Properties

Entrance control for shopping malls, entertainment venues, hotels, and airports.

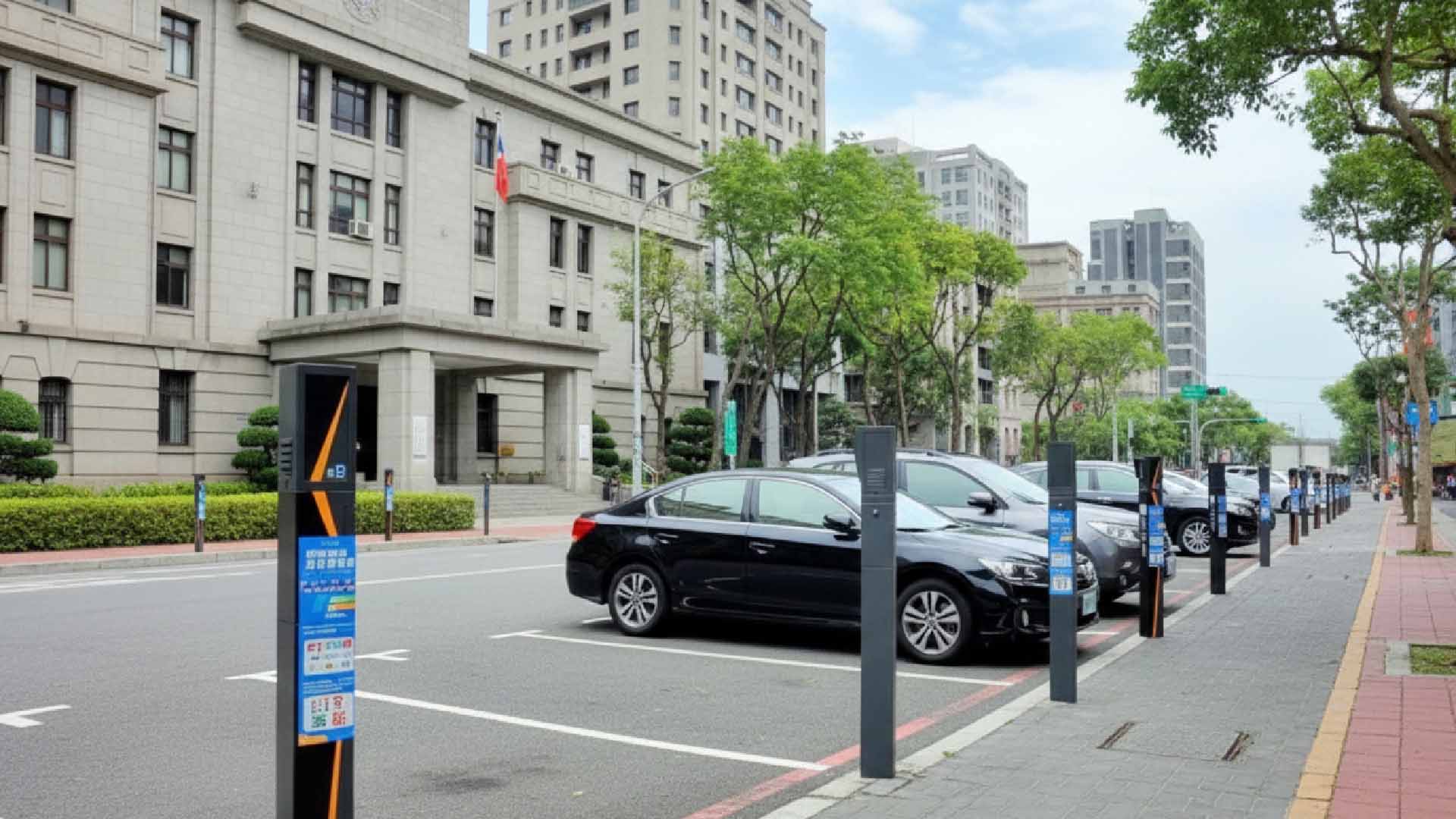

Government & Institutions

Access management for government buildings, campuses, and public facilities.

Smart Cities

Core infrastructure for smart traffic and smart parking systems.
